Path Traversal [CWE-22]

Path traversal or Directory traversal is a security vulnerability that describes improper limitation of pathname to a restricted directory.

Created: September 11, 2012
Latest Update: December 29, 2020

Table of Content

1. Description
2. Potential impact
3. Attack patterns
4. Affected software
5. Exploitation Examples
6. Severity and CVSS Scoring
7. Mitigations
8. Vulnerability Remediation Techniques and Examples
9. Common Fix Errors and Bypasses
10. References
11. Related Security Advisories

Want to have an in-depth understanding of all modern aspects of
Path Traversal [CWE-22]? Read carefully this article and bookmark it to get back later, we regularly update this page.

1. Description

Path traversal or Directory traversal is a security vulnerability that occurs when software uses attacker-controlled input to construct a pathname to a directory or file located outside of the restricted directory. An attacker might be able to read arbitrary files on the target system.

There are two types of path traversal weaknesses:

2. Potential impact

An attacker can gain access to sensitive and system information on the system, delete or modify files. The maximum impact depends on the functionality of the application.

3. Attack patterns

There are following CAPEC (Common Attack Pattern Enumeration and Classification) patterns for the weakness:

• CAPEC-23: File System Function Injection, Content Based
• CAPEC-64: Using Slashes and URL Encoding Combined to Bypass Validation Logic
• CAPEC-76: Manipulating Input to File System Calls
• CAPEC-78: Using Escaped Slashes in Alternate Encoding
• CAPEC-79: Using Slashes in Alternate Encoding
• CAPEC-139: Relative Path Traversal

This weakness is also mentioned in alternative WASC Threat Classification under WASC-33 and is treated as an attack.

4. Affected software

Software that uses external input to manipulate files is potentially vulnerable to this weakness.

5. Exploitation Examples

As an example we will use HTB23079 security advisory (CVE-2012-1467). This vulnerability allows renaming arbitrary files on the target system. We will demonstrate how to use this weakness to read database credentials.

This vulnerability can be exploited by authenticated users only, however user registration is enabled by default. We will use the PoC code provided in the advisory: http://[host]/lib/pkp/lib/tinymce/jscripts/tiny_mce/plugins/ibrowser/scripts/rfiles.php?lang=en&param=rename|/../../../../../../../../../../../../config.inc.php|1x.txt%00.jpg

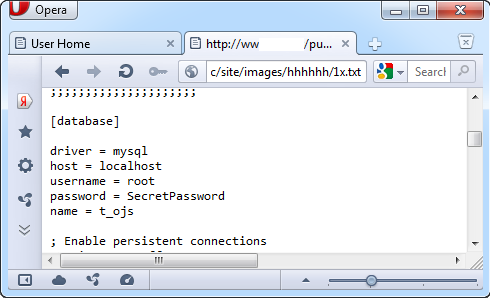

The above code renames the config.inc.php file into 1x.txt which is accessible remotely. Now, we can use the following URL http://[host]/public/site/images/[user]/1x.txt to read the contents of the config.inc.php file:

As demonstrated above, we obtained credentials of the database user. This technique can be used to gain complete control over the application or even the entire system.

6. Severity and CVSS Scoring

In most cases this vulnerability can be used to access restricted information. Depending on software design, this could be exploited to read and write files on the system or even execute arbitrary code.

In case of information disclosure, when an attacker can read only certain files, this weakness should be scored as:
5.3 [CVSS:3.0/AV:N/AC:L/PR:N/UI:N/S:U/C:L/I:N/A:N] – Medium severity.

If an attacker can read arbitrary file on the system, it should be scored as:
7.5 [CVSS:3.0/AV:N/AC:L/PR:N/UI:N/S:U/C:H/I:N/A:N] – High severity.

If an attacker can write files to arbitrary locations on the system, the vulnerability is usually scored as:
9.8 [CVSS:3.0/AV:N/AC:L/PR:N/UI:N/S:U/C:H/I:H/A:H] – Critical severity.

7. Mitigations

To protect the application from this weakness it is advised to follow these instructions:

• Never use attacker controlled data as a filename or part of the filename when performing operations on files or folders. If filename should be based on the user's choice use predefined conditions instead of direct input.
• Perform whitelist checks when working with files or directories using user controlled input.
• Use sandbox environments (e.g. jail, chroot) that enforce strict boundaries between the process and the operating system.

8. Vulnerability Remediation Techniques and Examples

8.1 General recommendations for software developers

In the provided examples we consider the "param" variable to be received from a user via HTTP GET or POST request and used as part of a filename in functions that work with files. To avoid the vulnerability we need to handle the variable as recommended below. The examples illustrate the variable handling in popular programming languages.

PHP

PERL

ASP.NET

ColdFusion

or with POSIX class:

Python

JAVA/JSP

These are general recommendations. Every case must be treated separately, considering the logic of the application as well as singularity of the system and tasks. Direct coping of the data into the code may cause disruption of the application functionality or can lead to improper patching of the vulnerability.

Caution: do not blindly copy-paste the above-mentioned solutions into your application code. In some cases this may result in incorrect behavior of the application or an inconsistent patch. Carefully read the References or consult security specialists in case you are not sure how to patch a vulnerability.

8.2 Using Web Application Firewall (WAF)

Web Application Firewalls can be an efficient solution to prevent vulnerability exploitation while you are developing or waiting for a security patch. We do not recommend using a WAF as a long-term solution, neither as a replacement for properly developed security patch.

As an example, we will use an open source web application firewall ModSecurity developed by Trustwave. There are many rule sets for ModSecurity licensed under ASLv2 and widely distributed by security companies and organizations. These rule sets can be applied to cover all basic cases of vulnerabilities’ exploitation and can be used on production servers.

The following rule is a part of the core rule set modsecurity_crs_42_tight_security.conf and can be used to protect a web application against the majority of directory traversal attacks:
SecRule REQUEST_URI|REQUEST_BODY|REQUEST_HEADERS|XML:/*|!REQUEST_HEADERS:Referer "(?i)(?:\x5c|(?:%(?:2(?:5(?:2f|5c)|%46|f)|c(?:0%(?:9v|af)|1%1c)|u(?:221[56]|002f)|%32(?:%46|F)|e0%80%af|1u|5c)|\/))(?:%(?:2(?:(?:52)?e|%45)|(?:e0%8|c)0%ae|u(?:002e|2024)|%32(?:%45|E))|\.){2}(?:\x5c|(?:%(?:2(?:5(?:2f|5c)|%46|f)|c(?:0%(?:9v|af)|1%1c)|u(?:221[56]|002f)|%32(?:%46|F)|e0%80%af|1u|5c)|\/))" "phase:2,rev:'2',ver:'OWASP_CRS/2.2.7',maturity:'9',accuracy:'7',t:none, ctl:auditLogParts=+E,block,msg:'Path Traversal Attack',id:'950103',severity:'2',logdata:'Matched Data: %{TX.0} found within %{MATCHED_VAR_NAME}: %{MATCHED_VAR}',t:none,capture,tag:'OWASP_CRS/WEB_ATTACK/DIR_TRAVERSAL', setvar:'tx.msg=%{rule.msg}',setvar:tx.anomaly_score=+%{tx.critical_anomaly_score},setvar:'tx.%{rule.id}-OWASP_CRS/WEB_ATTACK/DIR_TRAVERSAL-%{matched_var_name}=%{matched_var}'"

Let’s have a look at a vulnerable PHP script that reads contents of a file passed via the “file” HTTP GET parameter:

The abovementioned SecRule will be triggered if we try to use classic exploitation example:
http://[host]/vulnscript.php?file=../../../etc/passwd

Now, let’s have a look at a real-world example of vulnerable code described in HTB23144 (CVE-2013-1469):

This vulnerability can be exploited on systems where the "file_exists()" PHP function returns "true" for nonexistent directories within the filename.
The following PoC code will be blocked by the provided rule and will protect the vulnerable application:
http://[host]/install.php?dl=/../../local/config/database.inc.php

Another example of path traversal weakness in ocPortal descibed in HTB23078 (CVE-2012-1471) accepts a full file path via the file parameter and displays contents of the provided filename. Unfortunately, this vulnerability will not be blocked by the default rule set since there is no need to use directory traversal sequences to exploit this vulnerability:
http://[host]/site/catalogue_file.php?original_filename=1.txt&file=%252fetc%252fpasswd

The following rule will block access to any file outside the current directory:
SecRule ARGS_GET:file "(/)|(\\\\)" "phase:2,rev:'1',ver:'HTBRIDGE /0.1',maturity:'9',accuracy:'7', t:none, ctl:auditLogParts=+E,block, msg:'Path Traversal in ocPortal HTB23078',id:'1000000001',severity:'2', logdata:'Matched Data: %{TX.0} found within %{MATCHED_VAR_NAME}: %{MATCHED_VAR}',capture,tag:'HTBRIDGE/WEB_ATTACK/TRAVERSAL',setvar:'tx.msg=%{rule.msg}'"

We remind once again that delegation of web application security to a WAF may be quite an efficient temporary solution. However, it is not intended to replace a proper security patch.

9. Common Fix Errors and Bypasses

There are numerous techniques attackers may use to fool weak defence implementations, a subset of common techniques is listed below:

URL Encoding

http://[host]/vuln_script.php?lang=..%2F..%2F..%2F..%2Fetc%2Fpasswd

Double URL encoding

Encoding the traversal sequences twice may fool systems that decode the input once:

http://[host]/vuln_script.php?lang=%252e%252e%252e%252e%252fetc%252fpasswd%00

Unicode Encoding

Encoding the traversal sequences with 16-bit Unicode encoding:

http://[host]/vuln_script.php?lang=%u002e%u2215%u002e%u2215etc%u2215passwd

Overlong Unicode UTF-8 Encoding

Works on systems that have the capability to process overlong UTF-8 sequences:

http://[host]/vuln_script.php?lang=..%c0%af..%c0%af..%c0%afetc%c0%afpasswd

Valid Traversal Sequences

The web browser will treat the following examples as valid:

http://[host]/vuln_script.php?lang=/%5C../%5C../%5C../%5C../%5C../%5C..etc/passwd http://[host]/vuln_script.php?lang=..//.//.//etc/passwd

10. References

1. CWE-22: Improper Limitation of a Pathname to a Restricted Directory ('Path Traversal') [cwe.mitre.org]
2. Path Traversal [owasp.org]
3. Top 25 Series - Rank 7 - Path Traversal [software-security.sans.org]

11. Path Traversal Vulnerabilities, Exploits and Examples

• HTB23297: Arbitrary File Content Disclosure in Atutor
• HTB23283: Remote Code Execution in Roundcube
• HTB23278: Path Traversal via CSRF in bitrix.xscan Bitrix Module
• HTB23263: Path Traversal in BlackCat CMS
• HTB23259: Arbitrary File Disclosure and Open Redirect in Bonita BPM
